| XBD-A組件 |

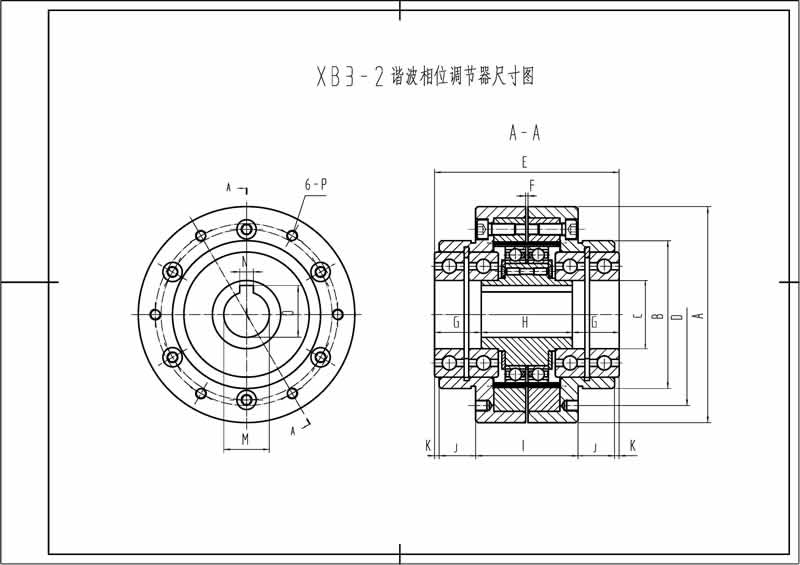

| XB3-2諧波相位調節器尺寸表 |
| 機型 |
A(g6) |
B(h7) |
C |
D |
E |
F |
G |
H |
I |
J |
K |
M(H7) |
N |
O |
P |
Q |
| 50 |
φ85 |
φ52 |
20 |
φ70 |
73 |
1 |
17.5 |
38 |
44 |
12.5 |
2 |
φ12 |
4 |
13.8 |
M4深6 |
軸承6004 20×42×12 |
| 60 |
φ95 |
φ65 |
30 |
φ80 |
81 |
20.5 |
40 |
45 |
16 |
φ20 |
6 |
22.8 |
M5深5 |
軸承6006 30×55×13 |
| 80 |
φ125 |
φ85 |
40 |
φ105 |
95 |
22.5 |
50 |
55 |
18 |
30 |
8 |
33.3 |
M6深6 |
軸承6008 40×68×15 |
| 100 |
φ145 |
φ100 |
50 |
φ125 |
113 |
22.5 |
68 |
65 |
20 |
4 |
φ35 |
10 |
38.3 |
M8深8 |
軸承6010 50×80×16 |
| 120 |
φ185 |
φ125 |
60 |
φ155 |
132 |
27 |
78 |
80 |
22 |
φ40 |
12 |
43.3 |
M10深10 |
軸承6012 60×95×18 |
| 160 |
φ235 |
φ140 |
70 |
φ195 |
147 |
30 |
87 |
117 |
12 |
3 |
φ50 |
14 |
53.8 |
M12深15 |
軸承6014 70×110×20 |
| 200 |
φ290 |
φ180 |
90 |
φ240 |
178 |
36 |
106 |
129 |
21.5 |
φ65 |
18 |
69.4 |
M12深15 |
軸承6018 90×140×24 |
| 250 |
φ360 |
φ210 |
110 |
φ290 |
212 |
41 |
130 |
155 |
25.5 |
φ80 |
22 |
85.4 |
M14深18 |
軸承6022 110×170×28 |
|
